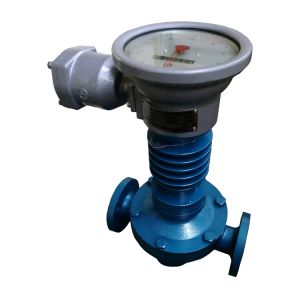

OGM-HT Series High Temperature Oval Gear Meter with Pulser
Description
OGM Series light oval gear flow meter, with innovative design and rational structure can be widely used in petroleum, chemical, pharmaceutical and public health sectors etc..Cast Iron, Cast Steel, Stainless Steel material available.
Characteristics
Technical Specification
| Mode | OGM-HT15 | OGM-HT20 | OGM-HT25 | OGM-HT40 | OGM-HT50 | OGM-HT80 | OGM-HT100 | OGM-HT150 | ||
| DN (mm) | 15 | 20 | 25 | 40 | 50 | 80 | 100 | 150 | ||
| Min. Flow Rate m3/h | 0.3 | 0.3 | 0.6 | 1.6 | 5 | 6 | 10 | 38 | ||
| Max. Flow Rate m3/h | 1.6 | 3 | 6 | 16 | 25 | 50 | 80 | 190 | ||
| Accuracy % | +-0.3～+-0.5 | |||||||||
| Working Temperature oC | -10～80 | |||||||||
| Pressure Mpa | 1.0-6.3 | |||||||||
| Liquid Viscosity MPa.s | 2～75 | |||||||||
| Min. Scale Value L | 0.1 | 1 | 10 | |||||||
| Register Amount m3 | 999.99 | 9999.9 | 99999 | |||||||
